Modern factories depend on precision, speed, and consistency, and robotic gripping systems play a central role in achieving all three. Among the many gripping solutions available today, magnetic technology has become increasingly popular for handling metal components without marking, deforming, or scratching their surfaces.
Unlike mechanical clamps that grip from the outside, a magnetic gripper in robotics applications uses magnetic force to hold ferrous parts securely, even those with irregular shapes or delicate finishes. This blog explains how these grippers work, why manufacturers are adopting them, and what makes them a smart choice for automated assembly lines, sheet metal handling, and machine tending processes across various industrial sectors.
Understanding the Basic Working Principle Behind Magnetic Gripping Systems
Magnetic gripping relies on magnetic flux to attract and hold ferromagnetic materials, replacing traditional pincer-style clamping. This method reduces mechanical stress on parts and allows robots to handle irregularly shaped components with greater consistency and less programming complexity.
How Magnetic Force Attaches to Metal Surfaces
The gripper generates a magnetic field that penetrates the surface of a metal object, creating an attractive force. This force holds the part firmly without requiring pressure from multiple contact points.
Why Surface Contact Matters for Grip Strength
Grip strength depends heavily on surface flatness and material thickness. Rough, curved, or thin materials reduce the effective holding force, so gripper selection should always match the part’s physical characteristics.
The Role of Air Gaps in Performance
Even a small air gap between the magnet and the workpiece can significantly reduce holding power. Manufacturers must account for coatings, rust, or oil films that create unintended gaps.
Common Materials That Respond to Magnetic Grip
Steel, iron, and certain alloys respond well to magnetic attraction, while aluminum, copper, and plastics do not. Understanding material compatibility is essential before implementing this gripping method.
Different Types of Magnetic Grippers Used in Modern Automation Lines
Not all magnetic grippers function the same way. Manufacturers choose between several designs depending on power requirements, safety needs, and the nature of the production environment they operate within.
Electromagnetic Grippers and Their Power Dependency
These grippers require a continuous electrical current to generate a magnetic force. When power is cut, the magnetic field disappears instantly, which can be useful for controlled release during automated part transfer.
Permanent Magnet Gripper Systems Explained
A permanent magnet gripper uses naturally magnetized material to maintain a constant magnetic field without needing external power. This makes it energy-efficient and reliable during power outages or emergency stops.
Electro Permanent Magnet Gripper Technology
An electro permanent magnet gripper combines both approaches, using a short electrical pulse to switch magnetism on or off while requiring no continuous power to hold the part in place.
Choosing Between Fixed and Switchable Designs
Fixed magnetic grippers offer simplicity, while switchable versions provide better control over release timing. The right choice depends on cycle speed, safety requirements, and part handling precision needed.
Why Manufacturers Are Increasingly Choosing Magnetic Grippers Over Traditional Methods
Traditional mechanical grippers often struggle with delicate, oddly shaped, or thin metal parts. A magnetic robot gripper solves many of these limitations by distributing force evenly across the surface rather than pinching from fixed points.
Reduced Risk of Part Deformation
Because there is no squeezing action, thin sheets and fragile components are less likely to bend, dent, or scratch during handling, which improves overall product quality and consistency.
Faster Cycle Times on Production Lines
Magnetic attachment and release happen quickly, allowing robots to complete pick-and-place tasks faster than gripper types that require repositioning or force calibration for each individual part.
Handling Irregular or Curved Components with Ease
Unlike jaws that need precise alignment, magnetic force can adapt to slightly curved or uneven surfaces, making it suitable for parts with complex geometries or inconsistent shapes.
Lower Maintenance Requirements Over Time
With fewer moving mechanical parts compared to jaw-based systems, magnetic grippers often experience less wear and require less frequent servicing, reducing unplanned downtime on the shop floor.
Real-World Applications Where Magnetic Gripping Technology Adds Value
From automotive plants to metal fabrication units, magnetic gripping supports diverse tasks. Its ability to handle heavy, flat, or stacked ferrous parts makes it valuable across multiple stages of production.

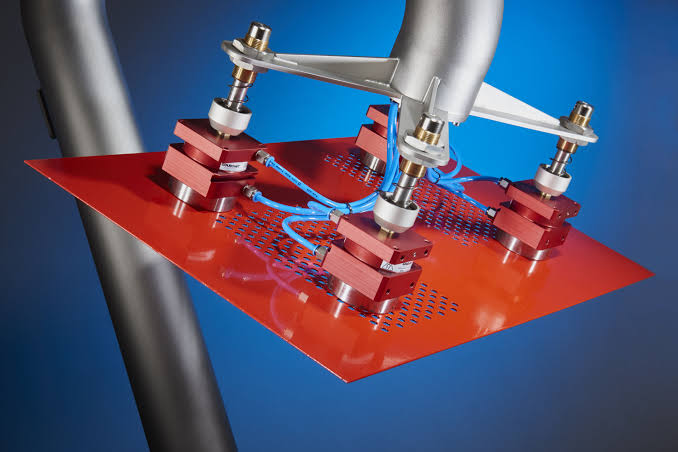

Sheet Metal Handling and Stacking Operations
Robots equipped with magnetic tooling can lift and stack thin metal sheets without leaving marks, which is critical in industries where surface finish quality directly affects product value.
Machine Tending for CNC and Press Operations
Magnetic grippers are frequently used to load and unload parts from CNC machines and presses, streamlining repetitive tasks while minimizing the risk of surface damage during transfers.
Automotive Component Assembly Lines
Car body panels, brackets, and structural components benefit from magnetic handling since it avoids visible clamp marks on surfaces that will later be painted or finished.
Warehousing and Metal Sorting Systems
Beyond assembly lines, magnetic grippers assist in sorting scrap metal or organizing ferrous inventory, helping facilities improve efficiency in logistics and material recovery processes.
Important Factors to Consider Before Selecting a Magnetic Gripping Solution
Selecting the right system requires evaluating payload weight, part geometry, cycle speed, and safety standards. A mismatched gripper can lead to dropped parts or inconsistent production quality over time.
Evaluating Payload Capacity and Part Weight
Every gripper has a maximum holding capacity. Overestimating this limit risks part slippage, so engineers should always test under real production conditions before finalizing a system.
Assessing Environmental Conditions on the Floor
Temperature, humidity, dust, and oil exposure can affect magnetic performance over time. Facilities operating in harsh conditions should choose designs rated for their specific environment.
Safety Standards for Automated Handling Systems
Compliance with industrial safety regulations ensures that magnetic tooling operates reliably alongside human workers, reducing the chance of accidental part release during operation. Standards such as ISO 10218 guide safe robotic integration.
Integration with Existing Robotic Arms
Compatibility with current robotic controllers and mounting interfaces matters. A gripper that integrates smoothly reduces installation time and avoids costly retrofitting of existing automation cells.
Trusted Expertise Behind Advanced Gripping and Automation Solutions
Reliable automation depends on engineering precision, and organizations with deep expertise in toolholding, workholding, and gripping technology continue to shape how factories handle delicate and complex components.
Specialized Know-How Across Diverse Applications
From processing micro-optical components as thin as a hair to milling implant surfaces for medical use, specialized engineering teams solve highly technical handling challenges across industries every day.
Delivering Complete Solutions from a Single Source
Rather than offering isolated components, some providers supply intelligent, complete systems for robot integration and automation processes, simplifying implementation for manufacturers with unique production requirements.
Supporting Local Manufacturing Needs
For businesses researching regional support and technical resources, Schunk India provides access to established expertise in gripping and automation technology tailored to local manufacturing environments and applications.
Key Takeaways
● Magnetic grippers hold parts using magnetic force, not pressure
● Surface flatness and material type affect grip strength directly
● Permanent designs work without a continuous electrical power supply
● Electro permanent systems combine efficiency with switchable control
● Ideal for sheet metal, CNC tending, and automotive parts
● Reduces part deformation compared to mechanical clamping methods
● Payload, environment, and safety standards guide proper selection
● Faster cycle times support higher overall production throughput
Conclusion
Magnetic gripping technology has reshaped how manufacturers approach automated handling, offering a gentler yet efficient alternative to traditional mechanical clamps. Whether it’s a permanent magnet gripper maintaining hold without power or an electro permanent system offering switchable control, these tools address real production challenges like part deformation, cycle speed, and surface protection.
As robotics continues to advance, understanding the strengths and limitations of magnetic solutions helps manufacturers make informed decisions for their specific applications. By evaluating payload needs, environmental conditions, and safety requirements, businesses can select a system that improves both efficiency and product quality, ultimately supporting smoother, safer, and more reliable automated production lines.
Frequently Asked Questions
1. What is a magnet gripper used for in industrial settings?
A magnet gripper is used to lift, hold, and transport ferrous metal parts without mechanical clamping. It’s common in sheet metal handling, machine tending, and assembly lines where surface protection and quick pick-and-place cycles matter for production efficiency.
2. Can magnetic grippers handle non-metal materials?
No, magnetic grippers only work effectively with ferromagnetic materials like steel and iron. Materials such as aluminum, plastic, copper, or wood do not respond to magnetic attraction, so alternative gripping methods are required for those applications.
3. Is a permanent magnet gripper safer during power failures?
Yes, since it doesn’t rely on continuous electricity, a permanent magnet gripper maintains its hold even if power is lost. This makes it a reliable choice for applications where safety and consistent part retention are critical priorities.
4. How does an electro permanent magnet gripper differ from a standard electromagnet?
It uses a brief electrical pulse only to switch magnetism on or off, unlike standard electromagnets that need constant power to hold parts. This design saves energy while still allowing controlled release during automated processes.
5. What industries benefit most from magnetic gripping technology?
Automotive manufacturing, metal fabrication, appliance production, and logistics sectors benefit significantly. Anywhere ferrous parts need careful, mark-free handling during assembly, sorting, or machine loading, magnetic gripping technology offers practical and efficient advantages.
